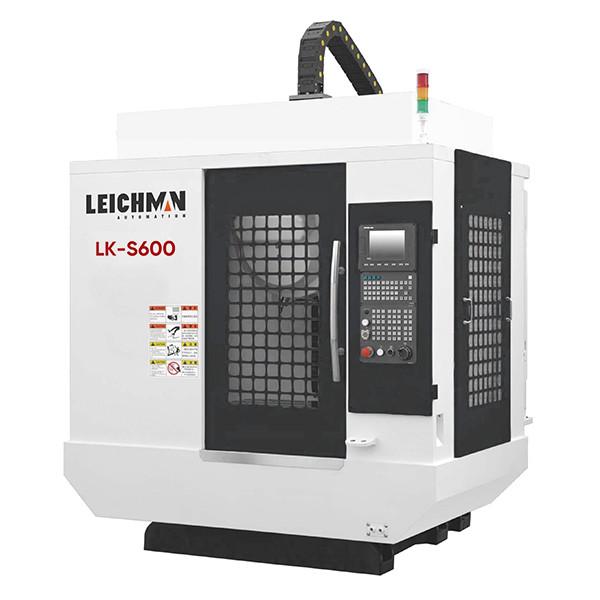

    CNC Drilling And Tapping Center S Series LK-S600/S800

    CNC Drilling and Tapping Center S Series LK-S600/S800

    • Adopt HT300 class cast iron
    • 3 axes adopt wide linear guideway,high rigidity
    • 3 axes adopt big pre-stretched ball screw
    • Adopt Slant Disc type 21T/16T tool magazine, fast tool changing

    ltemSpecificationUnitLK-S600LK-S800

    Capacity

    Max.drilling dia.(U driller)mmφ18φ20
    Max.tapping diammM16M18

    Worktable

    Table size(L×W)mm700×420900×500
    T slot(NO./width/distance)mm3/14/1255/18/90
    Table max.loadingkg300500

    Spindle

    Spindle motor powerkw5.5/7.5
    Spindle type/BT30
    Spindle max.speedrpmDirect-drive 12000(opt:20000)
    Distance from spindle nose to table facemm135~485120~570

    Feeding axes

    X/Y/Z axes travelmm600/400/350800/520/450
    Cutting feed speedmm/min5~15000
    X/Y/Z axes rapid moving speedm/min48/48/4848/48/36
    Positioning precisionmm±0.003/300
    Repeatable positioning precisionmm0.003

    Tool magazine

    Tool magazine type/Slant disc type
    Tools qty/2116
    Tool changing time(tool to tool)S1.61.8
    Max.tool dia.(full/no adjacent tool)mmφ50/φ120φ60/φ120

    Others

    Overall dimension(L×W×H)mm1900×2100×22002400×1700×2100
    Weightkg30004500

    Main parts list

    ItemBrand
    Ball screwTAIWAN-HIWIN/PMI
    Linear guidewayTAIWAN-HIWIN/PMI
    Ball screw bearingSWEDEN SKF/GERMAN FAG
    SpindleTAIWAN
    Tool magazineTAIWAN-SANJET
    Main electric partsFRANCE-SCHNEIDER
    Pneumatic partsTAIWAN-AIRTAC
    Lubrication pumpJAPAN-HERG

    Standard configuration

    SYNTEC 22MA CNC controller


    Optional configuration

    FANUC 0I MF CNC controller

    4th axes
