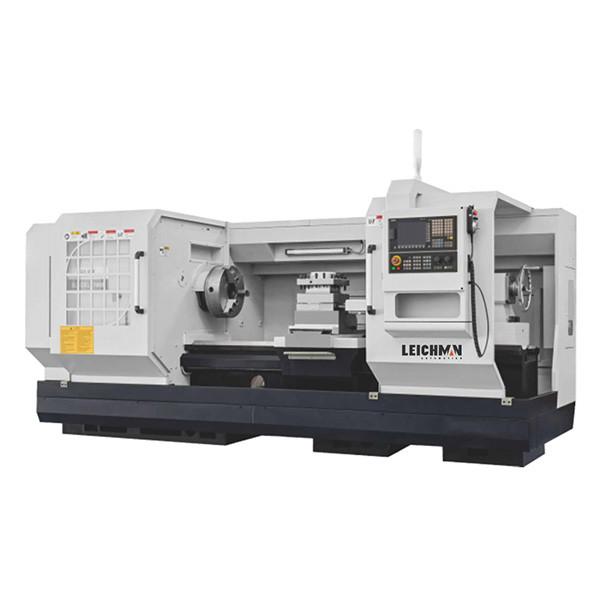

    Heavy Cutting CNC Lathe CKL Standard Series Flat Bed CNC Lathe

    ​Heavy Cutting CNC Lathe CKL Standard Series

    • Guideway width 550/600mm,spindle bore Φ104mm,heavy-duty type,suitable for heavy cutting
    • Adopt China top quality compound resinsand cast iron,after aging treatment,good precision keeping
    • Guideway hardened by ultrasonic frequency, good precision keeping, long using lifespan
    • Guideway stick PTFE,remove creeping,good wearability
    • Adopt Manual 3 class gear spindle, stepless speed in every class,can also choose Hydraulic 4 class

    ItemSpecificationUnitLK-CKL6163LK-CKL6180ALK-CKL6180BLK-CKL61100

    Capacity

    Guideway widthmm550600
    Max. swing dia. over bedmmΦ630Φ800Φ800Φ1000
    Max. swing dia. over slidemmΦ350Φ520Φ480Φ680
    Center distancemm1000/1500/2000/3000/4000/5000/6000
    Max. loading capacityt34
    SpindleSpindle boremmΦ104
    Spindle bore taper/Metric Φ120 Mt5#
    Spindle speed

    rpm

    10~1000

    (manual 3 class gears,stepless in every class);

    10~800

    (manual 3 class gears,stepless in every class);

    Spindle nose type/C11
    Chuck sizemmManual 3-jaw Φ315Manual 3-jaw Φ400
    Spindle motorkw1115
    Feeding axesX axes travelmm320420420520
    Z axes travelmm850/1350/1850/2850/3850/4850/5850
    X/Z axes rapid ratem/min4/6
    Tool postTool post typemm4 station electric tool post
    Toolshank sizemm32×3232×3232×3240×40

    Tailstock

    Tailstock quill travelmm250
    Tailstock quill dia.mmΦ100Φ120
    Tailstock quill taper/MT5#MT6#

    Overall size

    Lmm3300/3800/4300/5300/6300/7300/83003500/4000/4500/5500/6500/7500/8500
    W×Hmm1750×18501850×19001950×19002000×2100
    OthersN.W.T3.7/4.1/4.5/5.3/ 6.1/6.9/7.73.9/4.3/4.7/5.5/ 6.3/7.1/7.94.8/5.2/5.6/6.4/ 7.2/8/8.85/5.4/5.8/6.6/ 7.4/8.2/9
