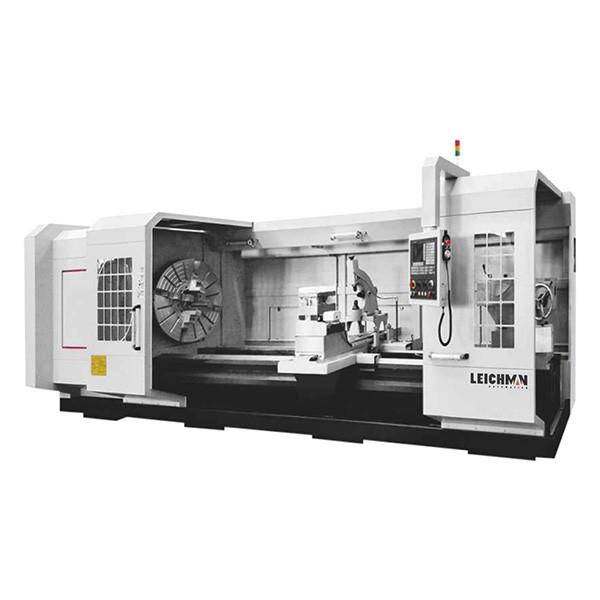

    High Accuracy CNC Automatic Lathe Machine CKW Heavy Duty Series

    High Accuracy CNC Automatic Lathe Machine CKW Heavy Duty Series

    • Guideway width 1100mm,spindle bore Φ100mm,heavy-duty type,suitable for heavy cutting
    • Mono-block bed,high rigidity
    • Adopt China top quality compound resinsand cast iron,after aging treatment,good precision keeping
    • Guideway hardened by ultrasonic frequency, good precision keeping, long using lifespan
    • Guideway stick PTFE,remove creeping,good wearability
    • Adopt manual 4 class gear spindle, stepless speed in every class

    ItemSpecificationUnitCKW61125CKW61140CKW61160CKW61180CKW61200

    Capacity

    Guideway widthmm1100
    Max. swing dia. over bedmmΦ1250Φ1440Φ1640Φ1840Φ2020
    Max. swing dia. over slidemmΦ710Φ820Φ1020Φ1220Φ1420
    Center distancemm3000-10000
    Max. loading capacityt10/20/30
    SpindleSpindle boremmΦ100
    Spindle bore taper/Metric 120
    Spindle speedrpmManual 4 class gears,stepless in every class
    10-30010-30010-30010-20010-200
    Spindle nose type/A2-15
    Chuck sizemmManual 4-jaw Φ1250Manual 4-jaw Φ1400
    Spindle motorkw37
    Feeding axesX axes travelmm7007508309301020
    Z axes travelmm2850-9850
    X/Z axes rapid ratem/min4/6
    Tool postTool post typemm4 station electric tool post
    Toolshank sizemm50×50

    Tailstock

    Tailstock quill travelmm300
    Tailstock quill dia.mmΦ220
    Tailstock quill taper/Metric 80

    Overall size

    Lmm6700-13700
    W×Hmm2550×23502600×24002700×25602800×27602900×2900
    OthersN.W.T22.6-28.923.6-29.924.6-30.925.6-31.926.6-32.9
