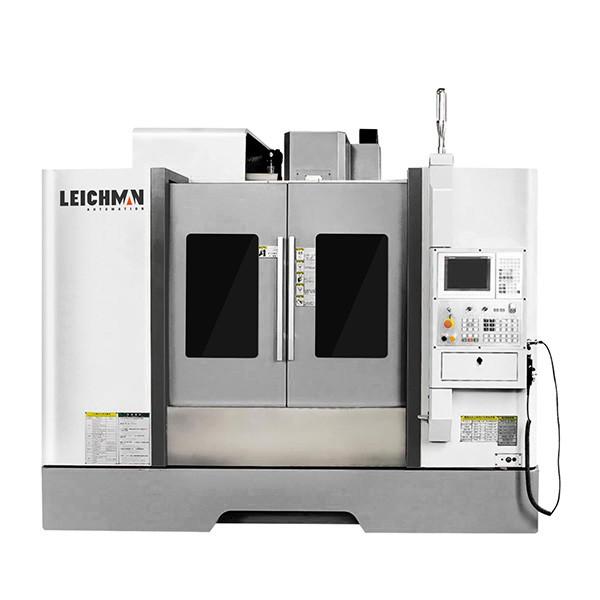

4 Axis 3-Axis CNC Vertical Machining Center VMC640

4 Axis 3-Axis CNC Vertical Machining Center VMC640

General vertical machining center, mainly used in medium-sized parts and molds processing. The workpiece in a fixture may be for the completion of milling, drilling, boring, reaming and other processes of processing, it can be single used and can also be uesd for multiple operations on parts in a production line cutting with powerful, high-speed positioning mechanical and electrial integration, automatic chip control and security protection features.

Machine Type	Unit	VMC640	VMC650	VMC1050E	VMC5030
Worktable
Worktable(length×width)	mm	800*300	800*500	1250*360	700*300
Maximun load of table	kg	300	400	500	300
T-solt(number of slot×slot width×pitch)	mm	3-18-90	5-18-90	3-18-80	3-14-90
Triaxial itinerary
Travel for X/Y/Z axes	mm	600330400	600500500	1000440500	500300400
Distance from spindle nose to table surface	mm	100-500	120-620	100-600	100-500
Distance from spindle center to colum guide surface	mm	380	550	460	400
Feed system
CNC System		KND1000	KND1000	KND1000	KND1000
Rapid shift of axes of X/Y/Z	m/min	10.10.10	24/24/24	10.10.8	24/24/24
Maximum cutting feed speed	mm/min	1-6000	1-12000	1-6000	1-12000
Automatic tool changing system(CNC milling without)
Standard tool quantity		12Bamboo hat/disk	16Bamboo hat/disk	12Bamboo hat/disk	8Bamboo hat
Tool max. dia./Length	mm	78/150	78/300	78/300	50/200
Tool exchange mode		pneumatic	pneumatic	pneumatic	pneumatic
Average tool exchange time	sec	7s Bamboo hat/2.5s disk	7s Bamboo hat/2.5s disk	7s Bamboo hat/2.5s disk	7s
Precision
Positioning accuracy	mm	0.008	0.008	0.008	0.008
Accuracy of repeated positioning	mm	0.006	0.005	0.006	0.005
Spindle system
Spindle speed	r.p.m	8000	8000	8000	8000
Spindle specifications(mode/insatllation diameter)		BT40/120	BT40/120	BT40/120	BT30
Drive mode of spindle		belt drive	belt drive	belt drive	belt drive
Motor power of spindle	kw	3.7	5.5	5.5	3.7
Air pressure
Requirements for air compressing	kg/cm²	≥6	≥6	≥6	≥6
Air pressure fiux	m³/min	≥0.3	≥0.3	≥0.3	≥0.3
Machine specifications
Integarated weight	kg	2600	3800	4100	2000
Overall dimension(length×width×height)	mm	190014002100	230021602200	300021002600	180014002100

VMC640

Characteristic

Ceneral vertical machining center, mainly used in medium-sized parts and molds procesiing.

The workpiece in a fixture may be for the completion of milling, drilling, boring, reaming and other processes of processing.

It can be single used and can also be used for multiple operations on parts in a production line cutting with powerful, high-speed positioning mechanical and electrical integration, automatic chip contrl and security protection features.

Workpice display

VMC640

The VMC machine can complete milling, boring, drilling, tapping and cutting threads and other processes.

VMC640
