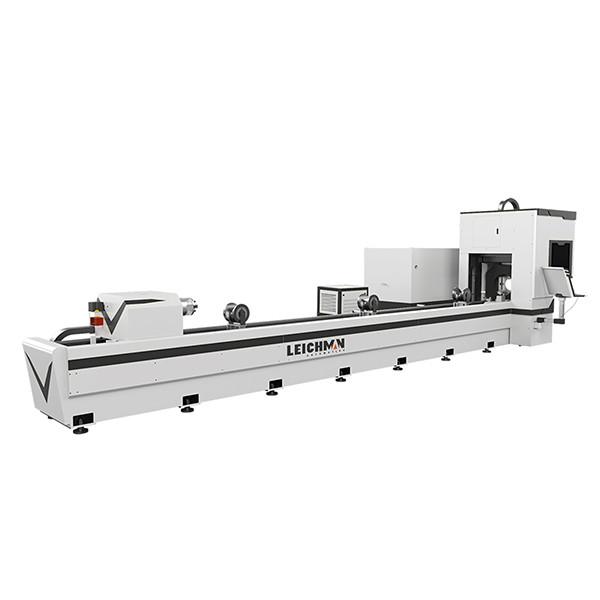

Zero Tailing Wastage Fiber Cnc Laser Pipe Cutting Machine

Zero Tailing Wastage Pipe Laser Cutting Machine

The fiber laser cutting machine can cut a variety of metal plates, mainly suitable for fast cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, various alloy sheets, rare metals and other materials;

· The chuck has a self-adjusting center function, which can realize quick centering and clamping. With automatic center finding function.

· The optical path is not restricted, the optical fiber transmission loss is small, and the processing range can be maximized.

· Low maintenance cost: no laser working gas; optical fiber transmission, no need for reflective lenses; it can save a lot of maintenance costs.

· The use of professional software can realize the timely processing of various graphics and characters, which is simple and convenient to use.


Model

2060

Max.Cutting Speed

60m/mm

Max. Rotating Speed

100rpm

Max.Acceleration

0.8G

X/Y Positioning Accuracy

±0.08mm

X/Y Repeated Positioning Accuracy

±0.05mm

Pipe cutting accuracy

±0.3mm

Operating Voltage

380V/50HZ

Laser power

1500W-4000W

Power consumption

23.5KW

Machine Running Temperature

0°C -40 °C

Machine Running Humidity

<90%

Transmission

Precise rack and pinion

Total Weight(kg)

11000

Machine Dimension(mm)

16000x4400x2800

Pipe diameter

Round pipe 20-219 Square pipe20-150
