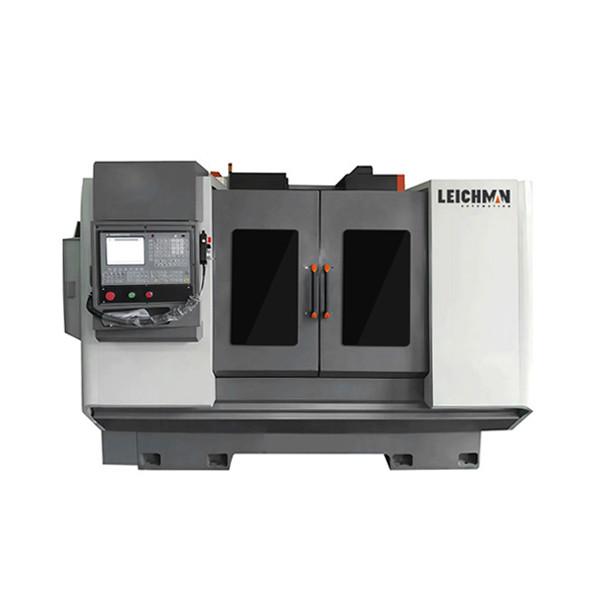

CNC Whirling Machine Thread Turning Machine XSK-40
1. Whirlwind milling head frame: The Whirlwind milling head frame is a TC-40 milling head produced by our company, with an internal cutting structure. The milling head is driven by a 2.2KW asynchronous motor through a triangular belt wheel to the position of the cutter head, using high-speed milling. The cutter head is forged with high-quality alloy steel and subjected to heat treatment process. Machine clamp cutting tools are selected for quick tool replacement.
2. Machine tool system: The standard configuration of the machine tool is to use a ventilation system.
3. Chuck and tailstock: Select standard three jaw chuck and tailstock.
No. | Project | Model | Parameter | Remarks |
1 | Bed body | 6140 bed body | 400*1000(mm) | Yunnan |
2 | Main spindle A-axis | Continuously variable speed | 0/25rpm/min | servo drive |
3 | Tailstock | ordinary | 0/110(mm) | |
4 | X-axis screw | ball screw | 2505*520 | |
5 | Z-axis screw | ball screw | 4006*1400 | |
6 | appearance | Full protection | 2400*1200*1800 | Self made 2mm thick |
7 | Whirling milling head | TC-40 | Inner apertureΦ100 | self-control |
8 | A-axis motor | 130/10N | ||
9 | X-axis motor | 130/10N | ||
10 | Z-axis motor | 130/10N | ||
11 | C-axis motor | level4 2.2KW | ||
12 | system | Three axis and three linkage | ||
positioning accuracy | C: 0.01°;Z:0.025;X:0.016 | |||
Repeated positioning | C:0.005°;Z:0.010;X:0.008 | |||
13 | Processing diameter | 10-60mm | ||
14 | Processing length | 750mm | ||
15 | Maximum pitch | arbitrarily | ||
16 | transformer | 3kv | ||
17 | controller | Schneider | ||
18 | switch | Schneider | ||
19 | line | self-control | ||
20 | chuck | 10---200mm | Avikiye | |
21 | X-axis travel | 200mm | ||
22 | Z-axis travel | 1000mm |
![]() |
