LK-200L Turret CNC Lathe High Precision Machining with Heavy Duty Sleeve Spindle and Japanese Roller Guid

LK-200L CNC Turret Lathe With Tailstock

PRODUCT FEATURES

High Precision, High Rigidity, Heavy Duty Sleeve Spindle

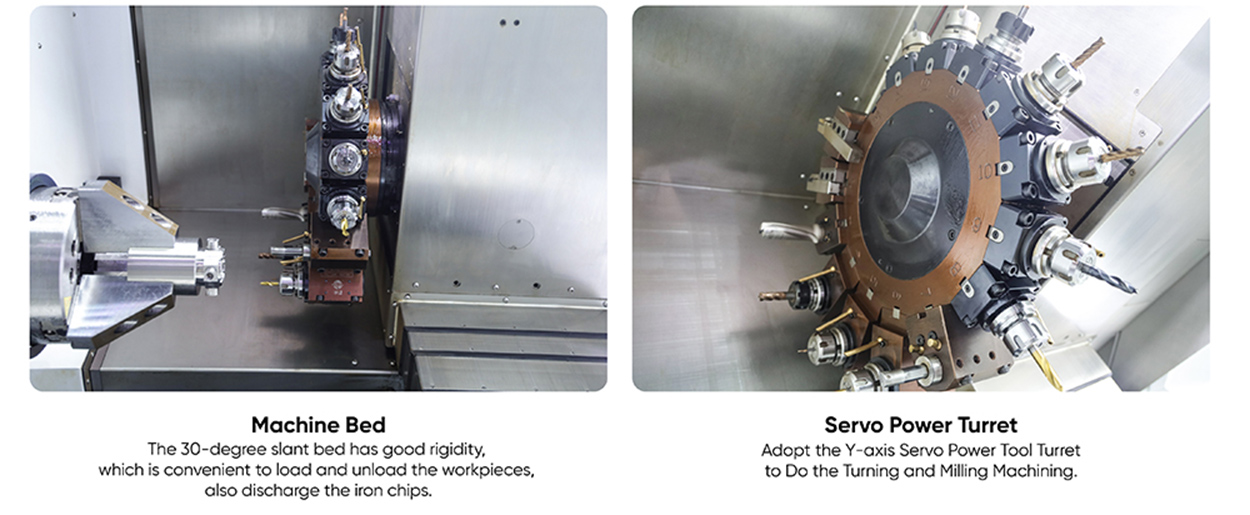

Overall Cast Iron Base, 30° Slant Bed, Good Rigidity, Easy Operation and Chip Removal
High Speed Japanese Roller Guide, Japanese Precision Ball Screws

Technical Parameters	Items	Unit	LK-200L
Processing Capacity	Max.Swing Over Bed	mm	600
	Max.Machining Diameter	mm	400
	Machining Length	mm	550
Travel	X Travel	mm	250
Travel	Z Travel	mm	565
Mechanical Accuracy	Spindle Runout	mm	0.003
	X/Y/Z-axis Positioning Accuracy	mm	X:0.004 Z:0.006
	X/Y/Z-axis Repositioning Accuracy	mm	X:0.002 Z:0.004
Spindle	Speed	rpm	4000



	Chuck Diameter	inch	8”
	Spindle Nose	-	A2-6
	Spindle Bore	mm	66
	Max.Diameter of Bar	mm	52
Tool Turret	Type of Tool Turret	-	100 in Center Height 400 in Cutting Disk 12-position Servo Tool Turret
	Outer Diameter of Tool Shank	-	25
	Inner Diameter of Tool Shank	mm	40
Tailstock	Tailstock shaft taper hole type	-	MT5
	Tailstock travel	mm	500
	Servo tailstock movement speed	m/min	30
	Hydraulic tailstock movement speed	m/min	10
Travelling Speed	X-axis Rapid Speed	m/min	30
	X-axis Rapid Speed	m/min	30
	Z-axis Rapid Speed	m/min	30
Motor Power	Spindle	kw	11
	X-axis Servo Motor	kw	1.7
	Z-axis Servo Motor	kw	1.7
Others	Lathe Dimension (LengthWidthHeight)	mm	2250x1700x1800
Others	Lathe Weight	kg	4000

CK52MY
