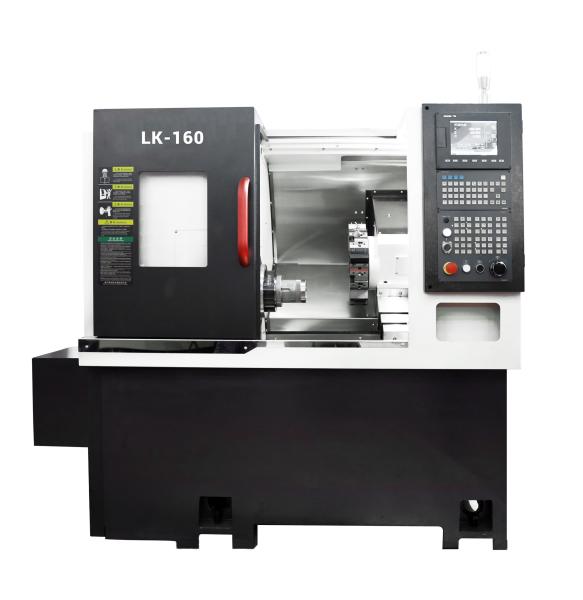

    Turret CNC Turning Center LK-160 Turret CNC Lathe With Tailstock

    Ask Lasest Price
    Brand Name : LEICHMAN
    Model Number : LK-160
    Payment Terms : L/C, T/T
    Supply Ability : 100
    • Product Details
    • Company Profile

    Turret CNC Turning Center LK-160 Turret CNC Lathe With Tailstock

    Turret CNC Turning Center LK-160 Turret CNC Lathe With Tailstock


    PRODUCT FEATURES


    • High Precision, High Rigidity, Heavy Duty Sleeve Spindle

    • Overall Cast Iron Base, 30° Slant Bed, Good Rigidity, Easy Operation and Chip Removal

    • High Speed Japanese Roller Guide, Japanese Precision Ball Screws


    Technical ParametersItemsUnitLK-160
    Processing CapacityMax.Swing Over Bedmm400
    Max.Machining Diametermm260
    Processing Lengthmm2200
    TravelX Travelmm185
    Z Travelmm280
    Mechanical AccuracySpindle Runoutmm0.003
    X/Y/Z-axis Positioning AccuracymmX:0.004 Z:0.006
    X/Y/Z-axis Repositioning AccuracymmX:0.002 Z:0.004
    SpindleSpeedrpm5000
    Chuck Diameterinch6”
    Spindle Nose-A2-5
    Spindle Boremm56
    Max.Diameter of Barmm45
    Tool TurretType of Tool Turret-10-position
    Servo Tool Turret
    Outer Diameter of Tool Shank-20
    Inner Diameter of Tool Shankmm25
    Moving SpeedX-axis Rapid Speedm/min30

    Z-axis Rapid Speed


    m/min30
    Motor PowerSpindlekw5.5
    X-axis Servo Motorkw1.7
    Z-axis Servo Motorkw1.7
    OthersLathe Dimension
    (Length*Width*Height)
    mm1900x1450x1700
    Lathe Weightkg2100
