Slant Bed Professional Tool Turret CNC Lathe CKD110L / CKD108L / CKD106L

Professional Advanced Tool Turret CNC Lathe CKD110L/CKD108L/CKD106L

The machine tool control system adopts Taiwan SYNTEC system, and it can also be equipped with CNC systems produced by other companies according to user requirements.

The bed is inclined at 30°, and the large carriage and tool post are inclined, which makes the operation of the machine tool and chip removal very convenient.

The main shaft adopts a high-precision main shaft, which contains Swiss SKF precision main shaft bearings. The main shaft flange can be directly installed with a three-jaw self-centering hydraulic chuck or other elastic chuck.

	Item	Unit	CKD110L	CKD108L	CKD106L
Capacity	Max swing over bed	mm	500	500	500
	Max cutting diameter	mm	400	400	400
	Max cutting length	mm	580	580	580
Travel	X axis travel	mm	250	250	250
Travel	Z axis travel	mm	600	600	600
Precision	Spindle runout	mm	0.004	0.003	0.004
	X/Z axis Position Accuracy	mm	-	X:0.004 Z:0.006	-
	X/Z axis Reposition Accuracy	mm	0.002	X:0.002 Z:0.006	0.002
Spindle	Spindle speed	rpm	3000	4000	5000
	Chuck diameter	inch	10”	8”	6”
	Spindle nose	-	A2-8	A2-6	A2-5
	Spindle bore	mm	86	66	56
	Max bar diameter	mm	76	52	45
Turret	Type	-	12-position servo turret	12-position servo turret	12-position servo turret
	Outer Shank dia.	-	25	25	25
	Inner shank dia.	mm	40	40	40

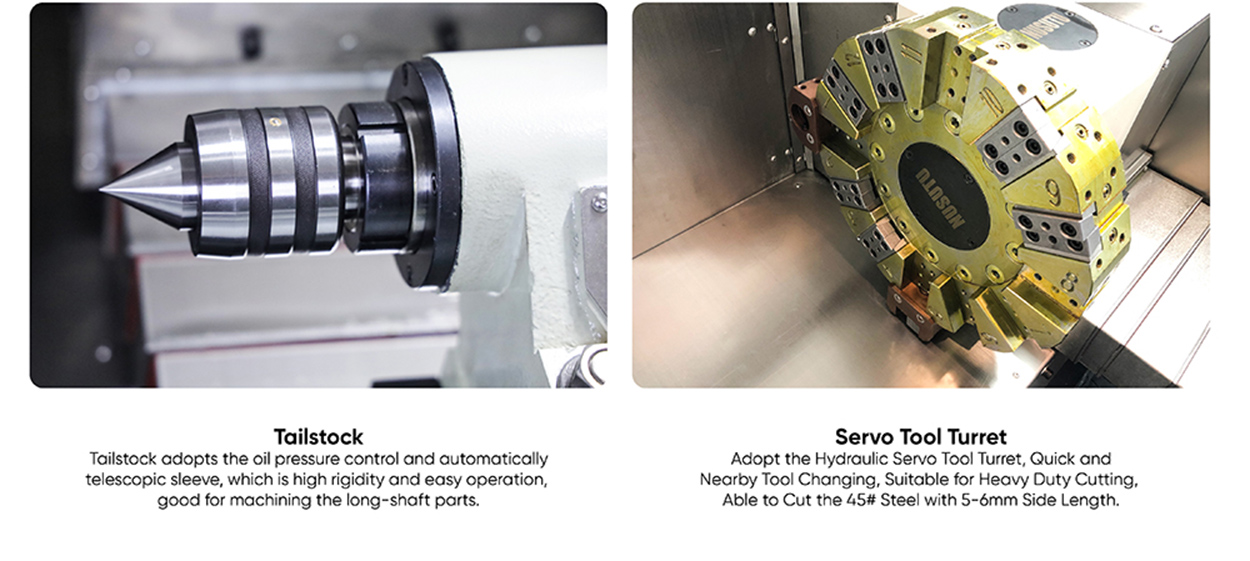

Tailstock	Sleeve diameter	mm	80	80	80
	Sleeve taper	-	MT5	MT5	MT5
	Travel(manual)	mm	480	480	480
	Sleeve travel	mm	100	100	100
Rapid speed	X axis rapid speed	m/min	24	30	24
Rapid speed	Z axis rapid speed	m/min	24	30	24
Motor power	Spindle	kw	11	11	7.5
	X axis feed motor	kw	2.4	2.4	2.4
	Y axis feed motor	kw	2.4	2.4	2.4
Other	Dimension	Mm	2440×1700×1800	2440×1700×1800	2440×1700×1800
Other	Weight	kg	4000	3800	4000

CKD108L

CKD108L CKD108L CKD108L CKD108L
