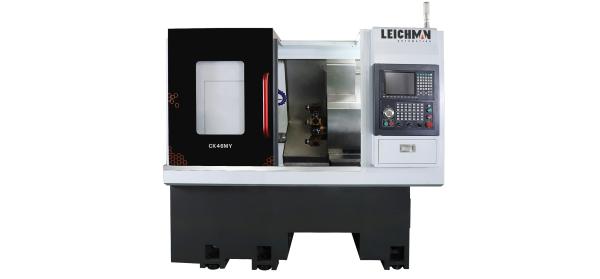

    Tool Turret CK46MY CNC Turning And Milling Lathe

    Turret Turning Center CNC Lathe CK46MY

    The base and the bed are integrally cast iron, which has strong shock resistance and is not easy to deform.

    The main shaft adopts Taiwan high-precision main shaft which contains Swiss SKF precision bearings. The main shaft flange can be directly installed with a three-jaw self-centering hydraulic chuck or other elastic chuck.

    The transmission part of the machine tool adopts high-precision Japanese THK ball screw and high-speed linear rail from Japanese THK 35-type.

    The Y-axis realizes compound processing, and the Y-axis function of the turret can cope with the processing of complex shapes.


    Item

    Unit

    CK52MY

    CK46MY

    CK108MY

    CK106MY

    Capacity

    Max swing over bed

    mm

    450

    450

    500

    500

    Max cutting diameter

    mm

    380

    380

    400

    400

    Max cutting length

    mm

    350

    350

    500

    500

    Travel

    X axis travel

    mm

    250

    250

    250

    250

    Y axis travel

    mm

    ±50

    ±50

    ±50

    ±50

    Z axis travel

    mm

    400

    400

    600

    600

    Precision

    Spindle runout

    mm

    0.003

    0.003

    0.003

    0.003

    Spindle index position accuracy

    ±0.001°

    ±0.001°

    ±0.001°

    ±0.001°

    X//Y/Z axis reposition precision

    mm

    0.002

    0.002

    0.002

    0.002

    Spindle

    Spindle speed

    rpm

    4000

    5000

    4000

    5000

    Chuck diameter

    inch

    8"

    6"

    8”

    6”

    Spindle nose

    A2-6

    A2-5

    A2-6

    A2-5

    Spindle bore

    mm

    63

    56

    66

    56

    Max bar diameter

    mm

    52

    45

    52

    45

    Turret

    Type

    BT55 12-position Power Turret

    BT55 12-position Power Turret

    Y-axis BT55 12-position Power Tool Turret

    Y-axis BT55 12-position Power Tool Turret

    Outer Shank dia.

    BT40 20 / BT55 25

    BT40 20 / BT55 25

    25

    25

    Inner shank dia.

    mm

    BT40 25 / BT55 40

    BT40 25 / BT55 40

    40

    40

    Rapid speed

    X axis rapid speed

    m/min

    30

    30

    30

    24

    Y axis rapid speed

    m/min

    24

    24

    30

    24

    Z axis rapid speed

    m/min

    30

    30

    30

    24

    Motor power

    Spindle

    kw

    11

    7.5

    11

    7.5

    X axis feed motor

    kw

    2.4

    2.4

    2.4

    2.4

    Z axis feed motor

    kw

    2.4

    2.4

    2.4

    2.4

    Y axis feed motor

    kw

    1.7

    1.7

    1.7

    1.7

    Milling motor

    kw

    3.1

    3.1

    3.1

    3.1

    Other

    Dimension

    mm

    2400×1700×1920

    2400×1700×1920

    2620×1700×1920

    2620×1700×1920

    Weight

    kg

    3200

    3200

    4200

    4200

    Optional without Y-axis to retain turn-mill function

    CK52M

    CK46M

    CK108M

    CK106M
